Service Penetrations

PFC Corofil Vent Duct Sleeve CVDS

A closure device for plastic vent ducts

PFC Corofil Vent Duct Sleeve is a flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders formed into a duct sleeve.

Tested in accordance with EN1366-3:2009 Vent Duct Sleeves offer fire resistance periods of up to EI240 for PVC-U rectangular ducts and wall constructions.

Grey in colour the sleeves have a glass fibre reinforced aluminium foil cladding around the perimeter along their full length. They are supplied in various dimensions to suit specific duct sizes and have a nominal 25mm thick wall. Sleeves can be cut down along their length to aid fitment and a strip of aluminium foil tape is used to seal the joint.

Where should you use Vent Duct Sleeve?

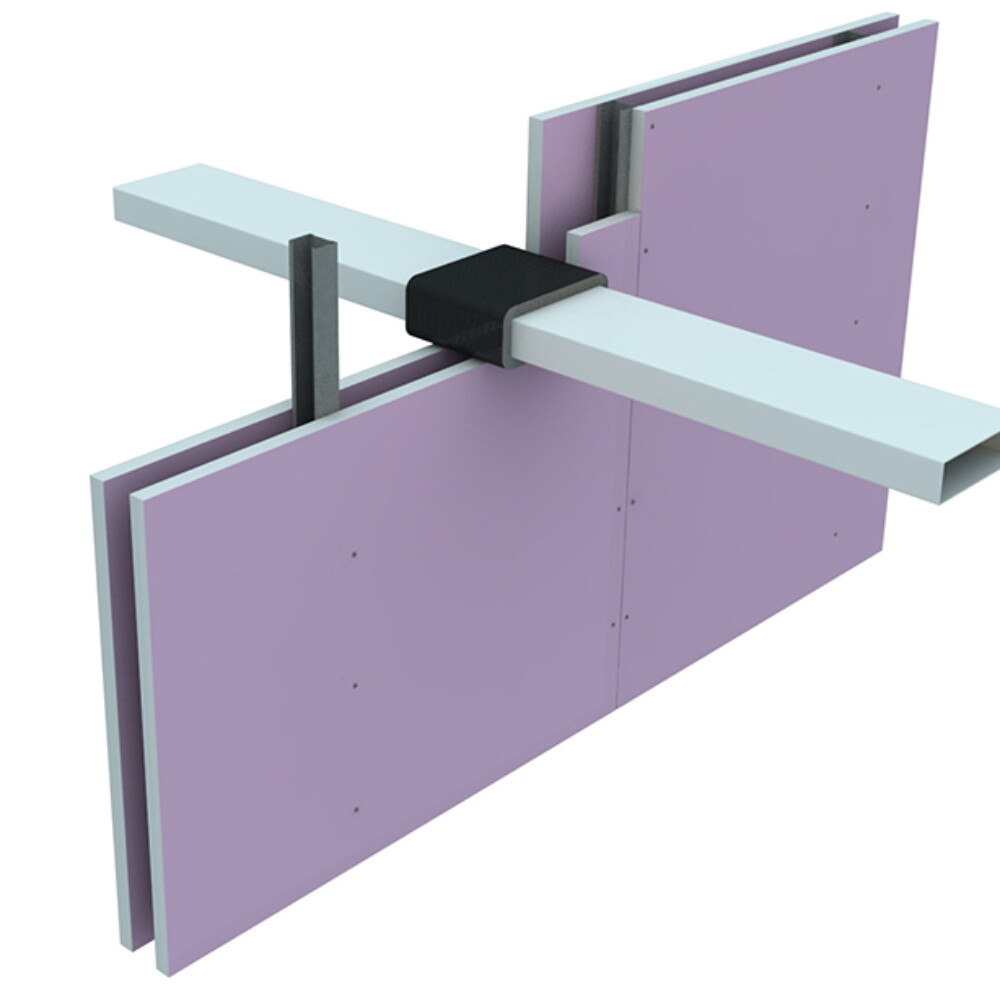

Vent Duct Sleeves are a closure device installed around plastic vent ducts through non load bearing wall constructions where they have been provided with apertures for the penetration of the services.

Features and benefits:

  • Acoustic rating of up to 49dB
  • Suitable for use with walls constructed from concrete, block, masonry, plasterboard and PFC Corofil Coated Panel System
