Cable Patch CCPH

PFC Corofil Cable Patches are made of an intumescent putty and used to form penetration seals where small cables, pipes or conduits penetrate walls.

Cable Patches are available as 60mm diameter discs for apertures a maximum of 25mm x 25mm and 100mm diameter discs for apertures a maximum of 50mm x 50mm. The discs are supplied pre-cut with a peel off protective backing. The cable patch is installed by removing the backing and applying the patch around the service where it penetrates the face of the wall.

Where should you use PFC Corofil Cable Patch?

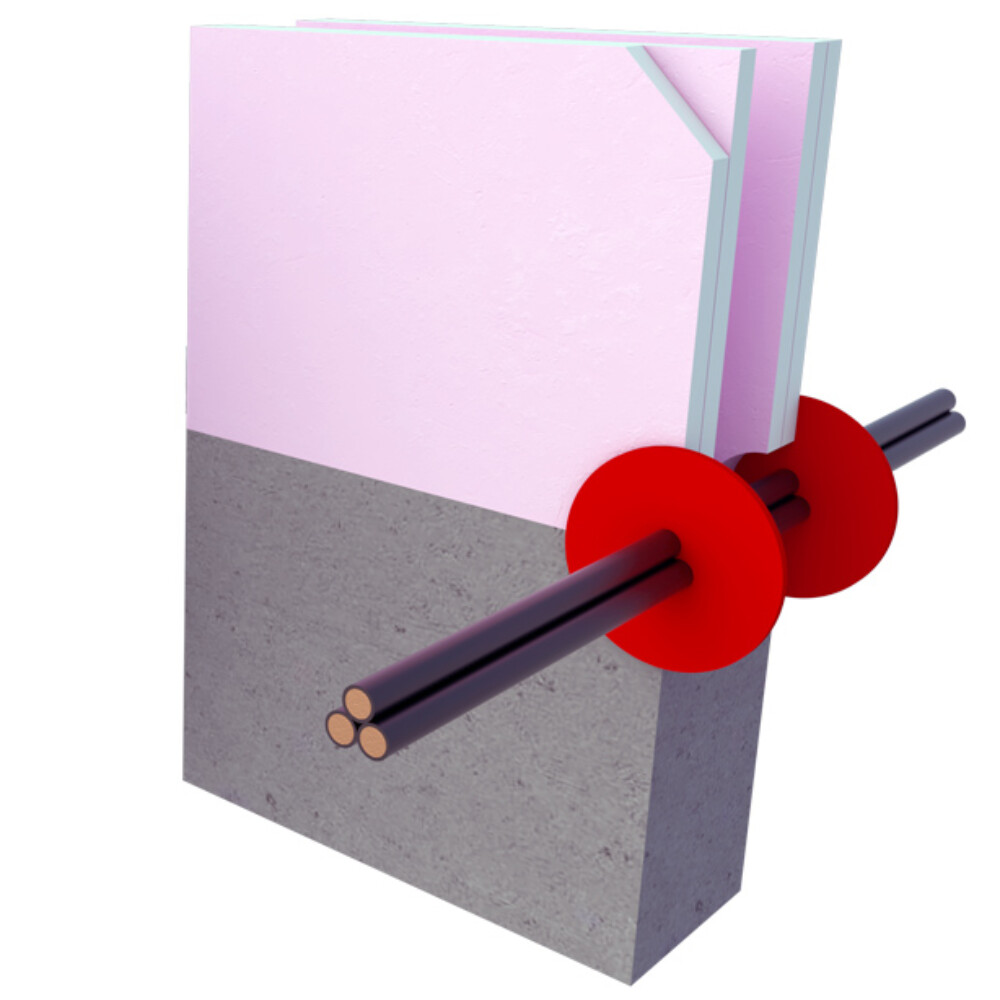

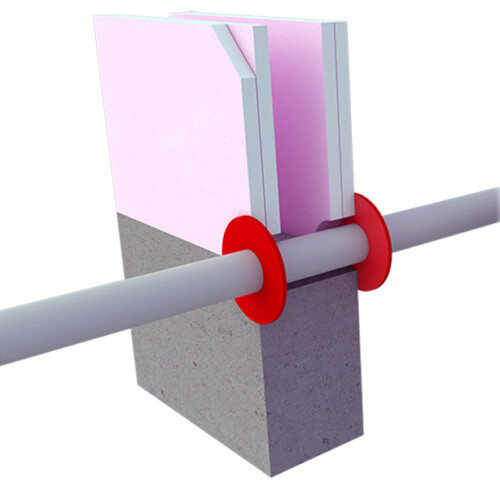

A Cable Patch is used to reinstate the fire resistance performance of flexible or rigid walls where they have been penetrated by small cables, pipes, or conduits.

Please refer to the technical data sheet for further information on substrates, installation instructions and performance data for tested applications.

View/Download datasheet(s):

View/Download safety datasheet:

Key points:
