Cavity Fire Stop CCFS Slabs

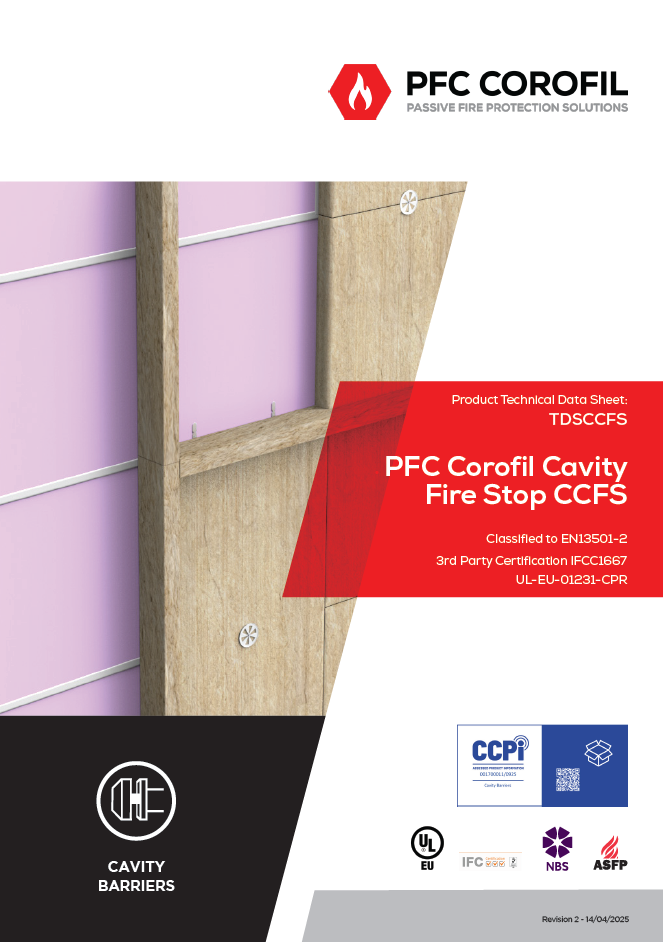

TDSCCFS
For installation within building cavities between the façade and the inner structure.
All tested cavity widths and substrate specifications along with their fire resistance performance can be found on the technical data sheet TDSCCFS.
Intended use
PFC Corofil Cavity Fire Stop CCFS Slabs are cut to suit the dimension of the cavity to be fire stopped and are suitable for installation against SFS with a calcium silicate fibre cement board, and masonry substrates in both horizontal and vertical orientations in cavities up to 600mm wide, and for installation in a masonry support system in cavities up to 450mm wide.
Material | Stone wool High density rock mineral fibre. |
Shape | Rectangle |
Length | 1000 mm |
Width | Bespoke |
Height | 82 mm 100 mm |
Key points:
- Applications provide up to 120 minutes fire integrity and insulation performance.
- Suitable for cavity widths between 10mm and 595mm.
- Can be cut to suit the dimension of the cavity to be fire stopped
