PFC Cavity Fire Barriers for Facades

A fully EN tested range of vertical and horizontal cavity barriers for cavities up to 600mm, offering up to 120 minutes integrity dependent on product and application.

PFC Corofil Open State Clip

TDSCOSC

PFC Corofil Open State Clip is a 4mm thick intumescent strip riveted to a stainless steel plate shaped to fit within the opening of a Masonry Support Bracket.

PFC Corofil Cavity Fire Barrier

TDSCCFB

PFC Corofil Cavity Fire Barrier CCFB is a full fill cavity fire barrier manufactured from a 100mm thick low density stone wool product installed between the inner and outer substrates of a masonry façade to reinstate the fire resistance performance of the cavity.

PFC Corofil Cavity Fire Stop with DPC

TDSCCFS with DPC

Classified to EN13501-2, 3rd Party certification IFCC1667. PFC Corofil Cavity Fire Stop with DPC is a stonewool product with an integral polythene DPC adhered to its outer face.

PFC Corofil Open state insert

PFC Corofil Open State Insert is designed for use with the PFC Corofil Open State Barrier COSB 25 (1024).

PFC Corofil Open State Insert is a 150mm wide strip of 110kg/m³ density, non-combustible stone wool, the thickness required is dependent on the depth of the cassette panel up to 31mm deep.

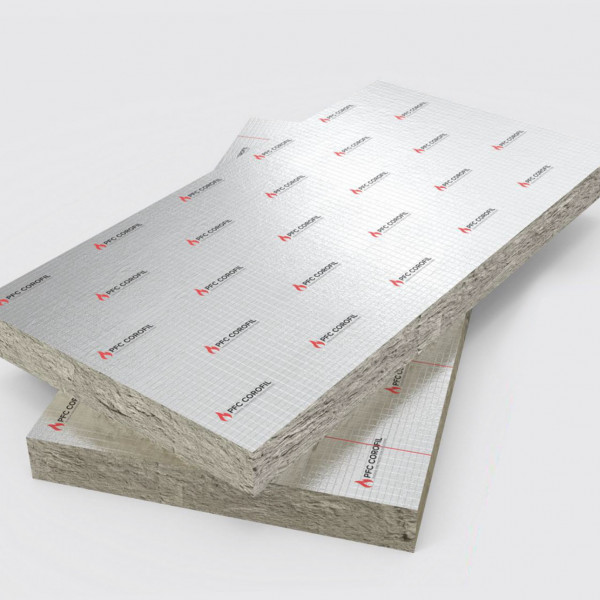

PFC Corofil Cavity Fire Stop CCFS Slabs

For installation within building cavities between the façade and the inner structure.

All tested cavity widths and substrate specifications along with their fire resistance performance can be found on the technical data sheet TDSCCFS.

PFC Corofil Open State Barrier COSB 44

PFC Corofil Open State Barrier COSB 44

An upgrade solution for fire protection between stud wall partitioning

PFC Corofil Open State Barriers combine non-combustible high-density stone wool with a high expansion intumescent strip fixed to the outer face. Depending on the product ordered, it will be supplied either yellow polythene shrink wrapped or foil encapsulated.

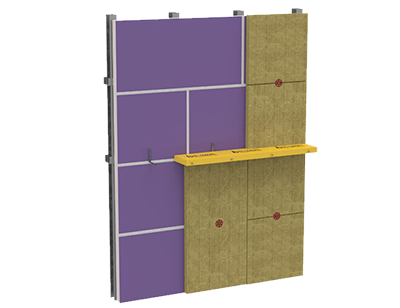

PFC Corofil Open State Barrier COSB 25

An Open State Cavity barrier for use in ventilated facade systems, reacting in the event of fire to help prevent the spread of fire and hot smoke

PFC Corofil Open State Barriers combine non-combustible high-density stone wool with a high expansion intumescent strip fixed to the outer face. Depending on the product ordered, it will be supplied either yellow polythene shrink wrapped or foil encapsulated.

PFC Corofil Cavity Fire Stop CCFS, plain, vertical

PFC Corofil Cavity Fire Stop CCFS

A full fill cavity barrier that can be used horizontally and vertically

PFC Corofil Cavity Fire Stop full fill cavity barrier is a stone wool product installed between the facade and the inner structure of a building to reinstate the fire resistance performance of the cavity.

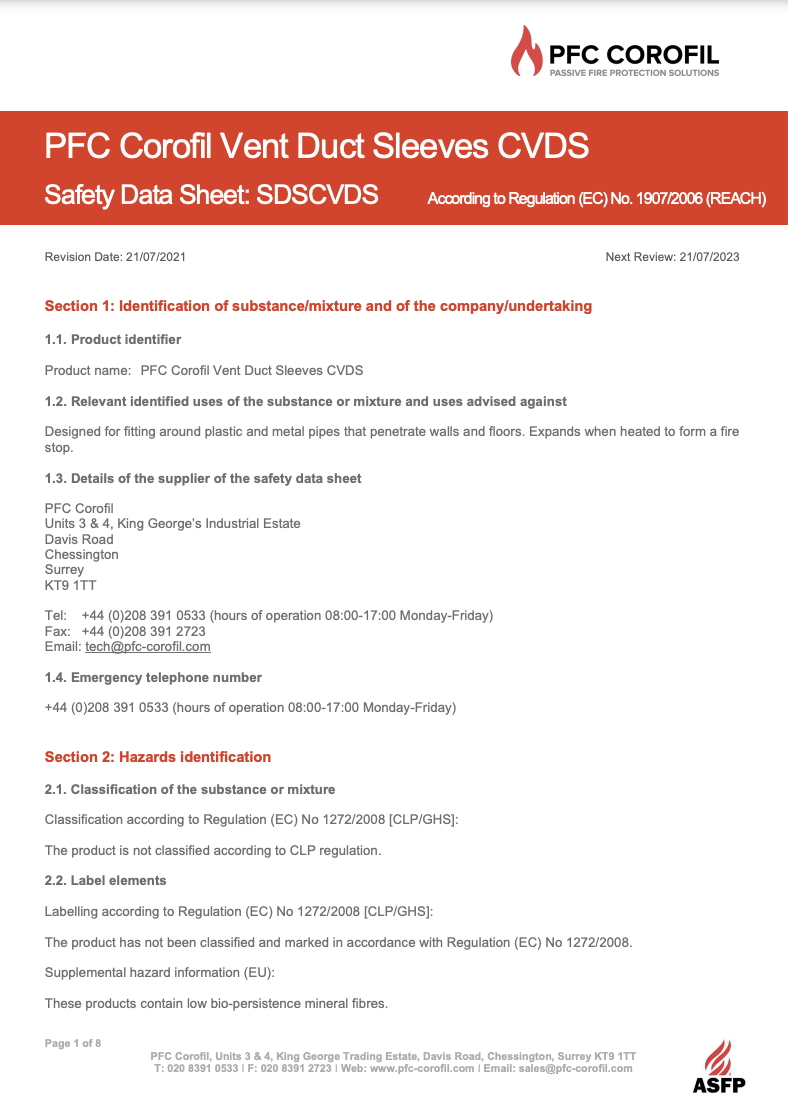

PFC Corofil Vent Duct Sleeve CVDS

PFC Corofil Vent Duct Sleeve CVDS

A closure device for plastic vent ducts

PFC Corofil Vent Duct Sleeve is a flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders formed into a duct sleeve.

PFC Corofil Insulated Fire Sleeve CIFS

PFC Corofil Insulated Fire Sleeves CIFS

Pipe closure device used to form a penetration seal

PFC Corofil Insulated Fire Sleeves are made of a flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders formed into a pipe sleeve.
