Open State Insert

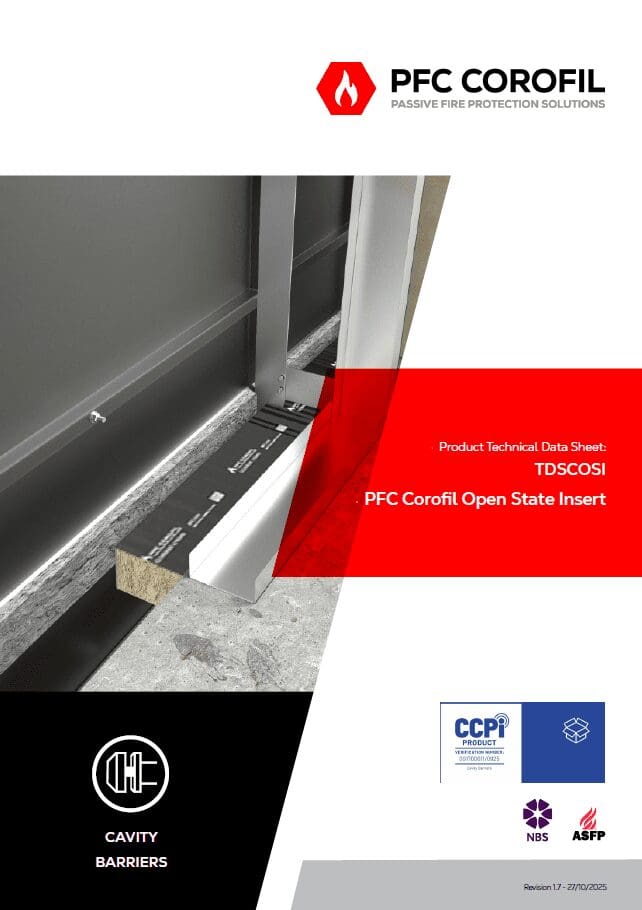

TDSCOSI
PFC Corofil Open State Insert is designed for use with the PFC Corofil Open State Barrier COSB 25 (1024).
PFC Corofil Open State Insert is a 150mm wide strip of 110kg/m³ density, non-combustible stone wool, the thickness required is dependent on the depth of the cassette panel up to 31mm deep.
PFC Corofil Open State Insert is adhered to the inner face of the cassette panel using PFC Corofil Fire Rated Silicone Sealant and should finish flush with the face of the cassette panel facing into the void and allows the intumescent open state barrier to maintain a continuous air gap at the back of the panel without the need to notch around the panel joints.
PFC Corofil Open State Insert is tested to the principles of EN1363-1 and ASFP Technical Guidance Document 19 (TGD19).
Where to use the PFC Corofil Open State Cassette Insert?
PFC Corofil Open State Insert is designed for use with the PFC Corofil Open State Barrier COSB 25 (1024).
The insert should fill out the depth of the cassette panel, allowing a continuous air gap to be maintained behind the cassette panel without the need for notching around the panel joints.
View the installation instructions for the Open State Insert in the datasheet.
Key points:
- Tested in accordance with the principles of EN1363-1 and ASFP Technical Guidance Document 19 (TGD19)
- Manufactured from the same stone wool as PFC Corofil Open State Barrier COSB 25 (1024)
- Suitable for cavity widths between 90mm and 300mm
