Enabling a fire break wall when penetrated by cables, combustibles and steel pipes. PFC Corofil Firebreak Service Transits are round, square or rectangular steel sleeves which contain a heat reactive material. When exposed to heat the intumescent material begins to react, rapidly forming an insulating char plug which effectively closes and seals the service transit,…

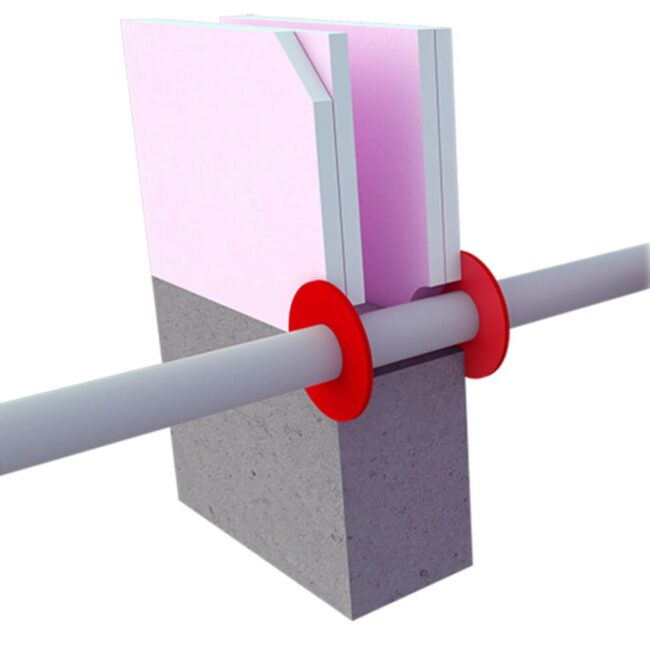

PFC Corofil Cable Patches are made of an intumescent putty and used to form penetration seals where small cables, pipes or conduits penetrate walls. Cable Patches are available as 60mm diameter discs for apertures a maximum of 25mm x 25mm and 100mm diameter discs for apertures a maximum of 50mm x 50mm. The discs are…

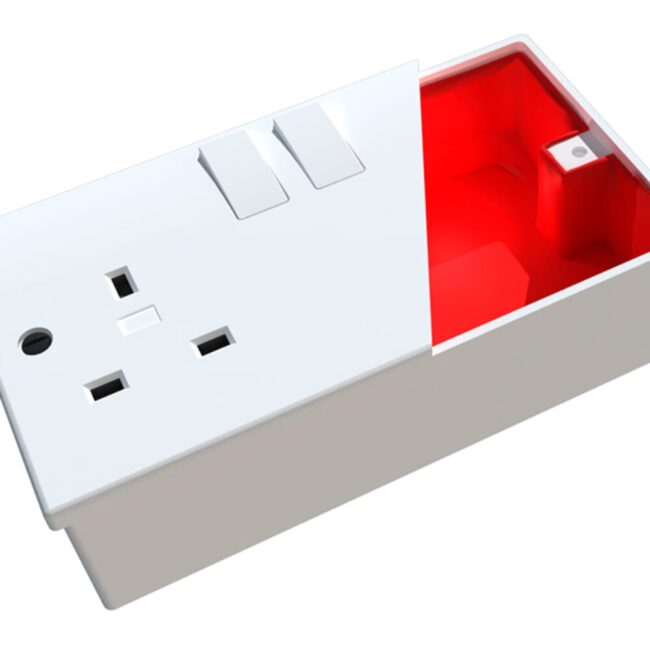

Electrical box putty pads An intumescent fire-stopping device for electrical back boxes. PFC Corofil Intumescent Putty Pad CIPP is a flexible intumescent sealant used to reinstate the fire resistance performance of flexible and rigid wall constructions where they have been provided with apertures for the penetration of electrical cables into electrical back boxes. The PFC…

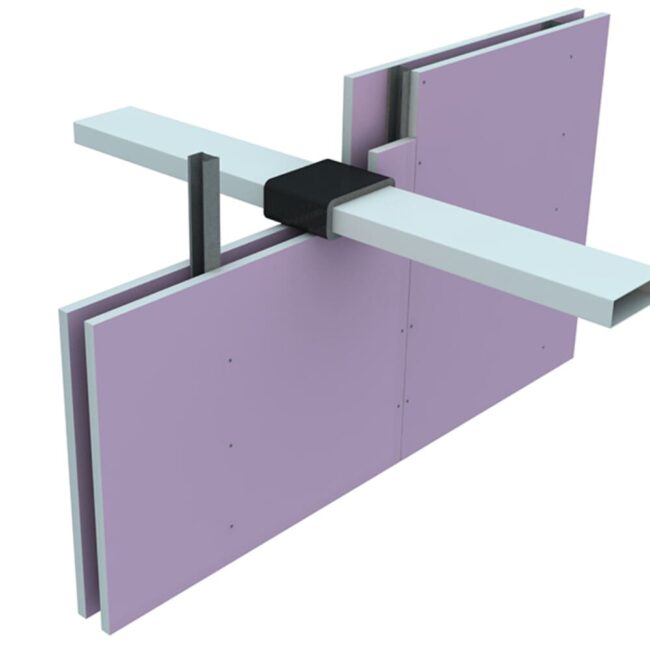

A closure device for plastic vent ducts. PFC Corofil Vent Duct Sleeve is a flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders formed into a duct sleeve. Tested in accordance with EN1366-3:2009 Vent Duct Sleeves offer fire resistance periods of up to EI240 for PVC-U rectangular ducts and wall constructions.…

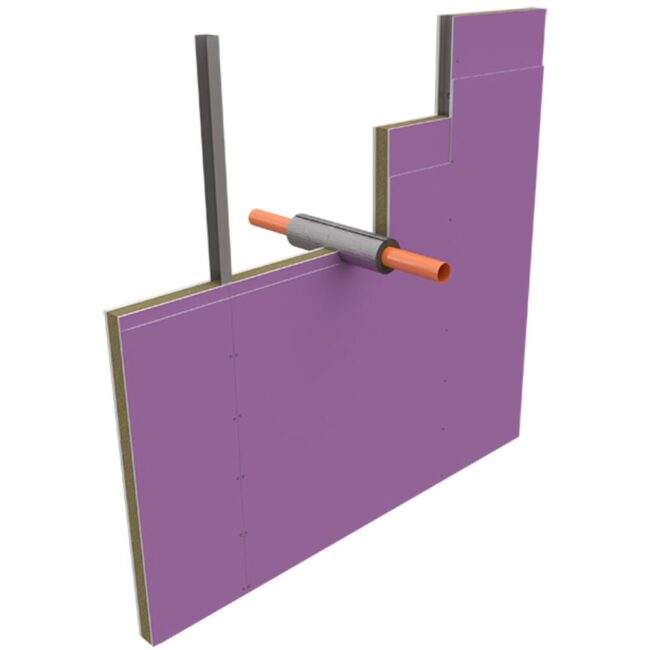

A pipe closure device that is used to form a penetration seal in the event of a fire. PFC Corofil Insulated Pipe Fire Sleeves are made of a flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders formed into a pipe sleeve. Our Insulated Fire Rated Pipe Sleeves have been tested…

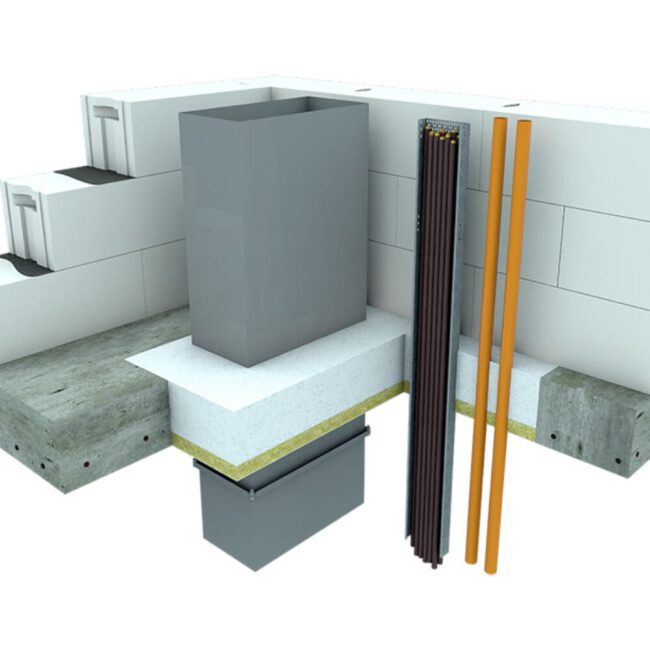

A fire-stopping compound used to provide a fire rated seal around service penetrations in fire rated walls and floors. PFC Corofil Firestop Compound CFSC is a gypsum-based mortar containing perlite and fibres which is mixed with water and either poured or trowelled into a prepared aperture around service penetrations. The product has been tested to…

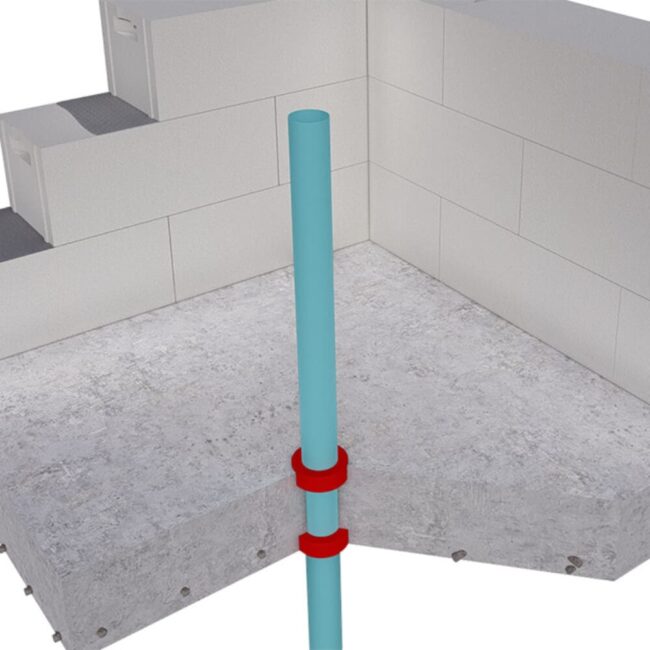

PFC Corofil Intumescent Pipe Wraps are designed and tested to provide a fire-resistant seal in flexible walls, rigid walls, rigid floors, and PFC Corofil Coated Panels where service penetrations pass through them containing plastic pipes and metallic pipes with insulation. Tested to EN1366-3, PFC Corofil Intumescent Pipe Wrap offers fire resistance periods of up to…

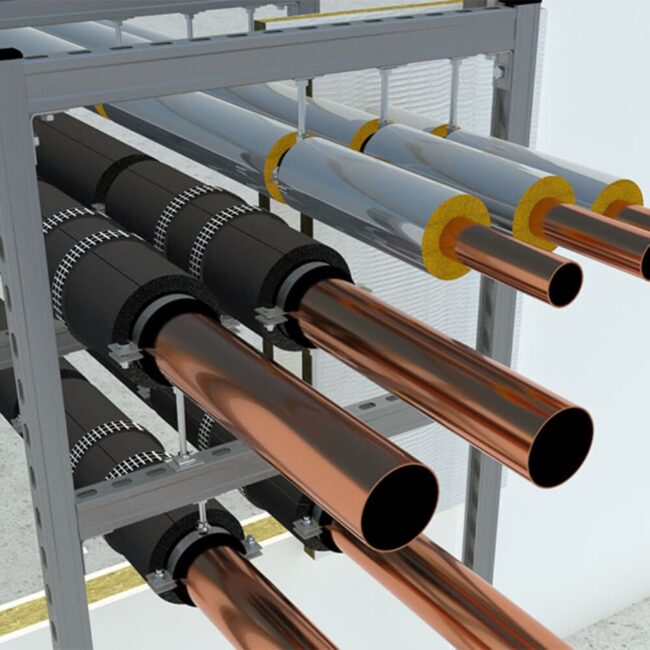

Versatile multi-application fire stopping product. PFC Corofil Universal Pipe Wrap is an intumescent strip which is installed around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions where they have been provided with apertures for the penetration of combustible pipe services. Tested to EN1366-3, Universal…

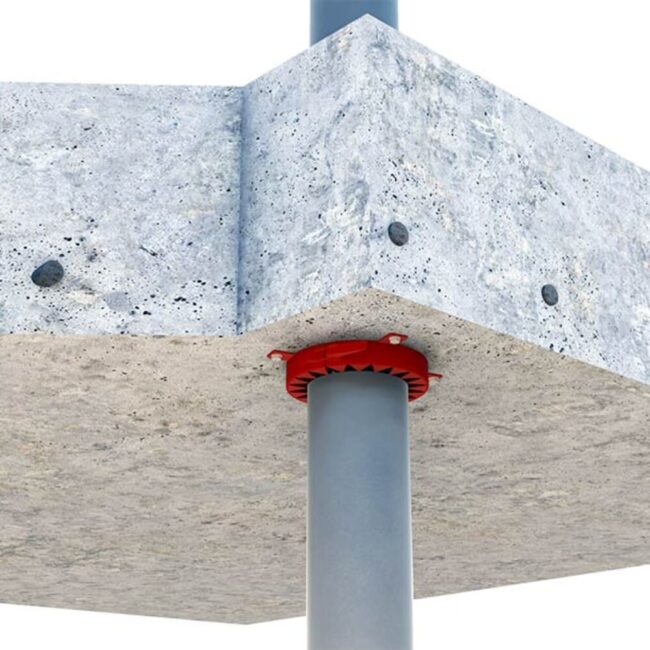

Fire stopping for service penetrations containing single plastic pipes. PFC Corofil Intumescent Pipe Collars are designed and tested to provide a fire-resistant seal in flexible walls, rigid walls, rigid floors, and PFC Corofil Coated panels where they have been penetrated by service penetrations containing plastic pipes and metallic pipes with insulation. Tested to EN1366-3, PFC…
TDSCCFS with DPC Classified to EN13501-2, 3rd Party certification IFCC1667. PFC Corofil Cavity Fire Stop with DPC is a stonewool product with an integral polythene DPC adhered to its outer face. It has been tested to EN1366-4 in cavity widths up to 200mm and will provide 120 minutes of fire integrity and insulation performance. View…
