PFC Corofil Fastight Curtain Wall Barrier is a stone wool product applied with PFC Corofil Fastight Coating, installed between curtain walling and the concrete slab edge of a building to reinstate the fire resistance performance of the cavity. PFC Corofil Fastight Curtain Wall Barrier has been tested to EN1364-4 and will provide up to 120…

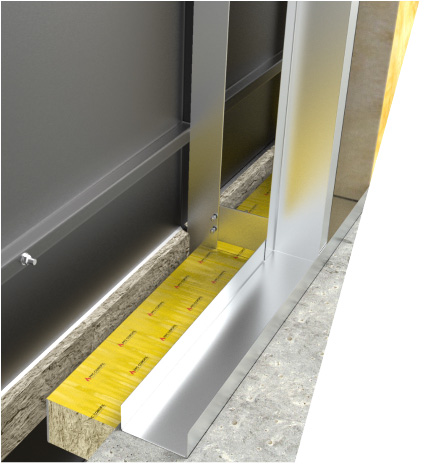

TDSCOSI PFC Corofil Open State Insert is designed for use with the PFC Corofil Open State Barrier COSB 25 (1024). PFC Corofil Open State Insert is a 150mm wide strip of 110kg/m³ density, non-combustible stone wool, the thickness required is dependent on the depth of the cassette panel up to 31mm deep. PFC Corofil Open…
TDSCCFB PFC Corofil Cavity Fire Barrier CCFB is a full fill cavity fire barrier manufactured from a 100mm thick low density stone wool product installed between the inner and outer substrates of a masonry façade to reinstate the fire resistance performance of the cavity. The lighter density allows greater scope for compression when installing within brickwork…

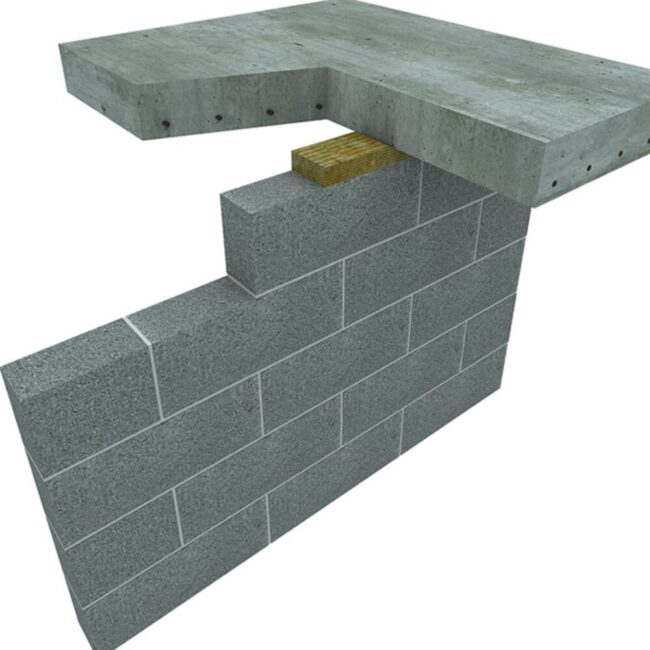

Fire stopping solution for horizontal and vertical linear joints. PFC Corofil Linear Gap Seal Strip is a stone wool strip installed in rigid wall and rigid floor constructions to maintain the fire resistance of the separating element. Linear Gap Seal Strip is designed and tested to close linear gaps in rigid walls and rigid floors.…
TDSCCFS with DPC Classified to EN13501-2, 3rd Party certification IFCC1667. PFC Corofil Cavity Fire Stop with DPC is a stonewool product with an integral polythene DPC adhered to its outer face. It has been tested to EN1366-4 in cavity widths up to 200mm and will provide 120 minutes of fire integrity and insulation performance. View…
TDSCCFS For installation within building cavities between the façade and the inner structure. All tested cavity widths and substrate specifications along with their fire resistance performance can be found on the technical data sheet TDSCCFS. View NBS Source View/Download datasheet(s): DATASHEET Key points: Applications provide up to 120 minutes fire integrity and insulation performance. Suitable…
An intumescent, fire-stopping sealant suitable for linear gap seals and penetration seals. PFC Corofil Intumescent Acoustic Sealant is an acrylic-based sealant used to form linear gap seals where gaps are present in wall and floor constructions and linear joint seals where wall and floor constructions meet. Our 2-hour fire-rated sealant can also be used to…

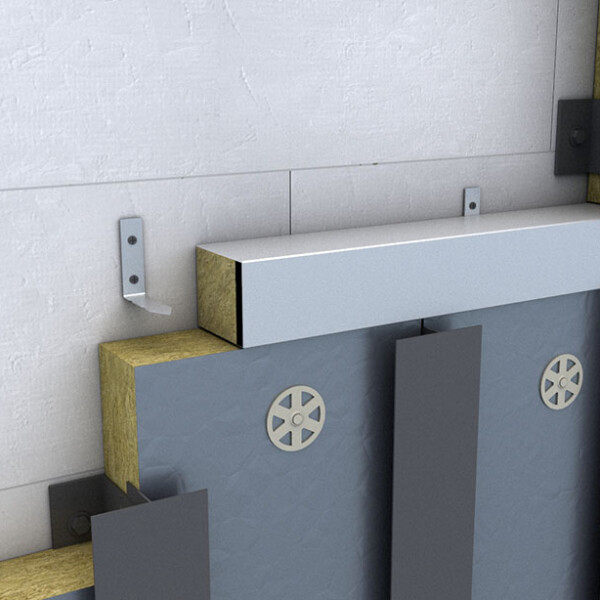

COSB 44 A 44mm Open State Cavity Barrier for use in ventilated facade systems, reacting in the event of fire to help prevent the spread of fire. PFC Corofil 44mm Open State Barriers combine non-combustible high-density stone wool with a high expansion intumescent strip fixed to the outer face. Depending on the product ordered, it…
PFC Corofil Linear Gap Seal Block is a stone wool block installed in the trapezoidal profile of a composite profile deck at the head of flexible and rigid wall constructions and above a steel beam protected with a gypsum-based cladding system. Tested utilising the principles of EN1366-4, PFC Corofil Linear Gap Seal Blocks will provide…
