PFC Corofil Acoustic Profile Fillers are supplied in 1200mm lengths with either white or black tissue facing. They are available in a range of densities to meet the roofing manufacturer’s or architect’s specification. Designed to fit into the corrugations of perforated metal roof decking Acoustic Profile Fillers are used to reduce sound reverberation within a…
An upgrade solution for fire protection between stud wall partitioning. Tested in accordance with BS 476 Part 22 PFCTS CW Fire Protection System provides up to 60 minutes integrity and insulation fire protection. The PFCTS CW Fire Protection System provides a method of improving the fire and acoustic properties of existing timber stud partitions in…

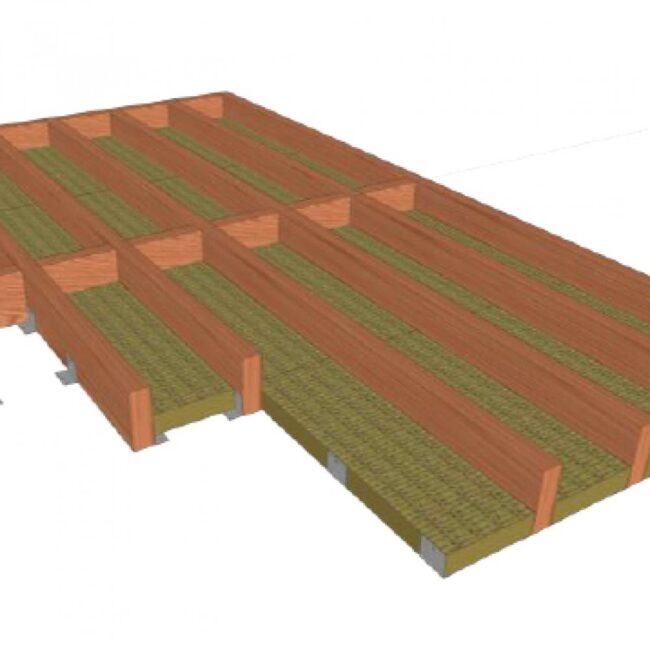

PFCTS CF PFCTS CF Fire Protection System provides a method of increasing the fire resistance of timber compartment floors without the need for removing ceilings. This system is also not reliant on any ceiling type to achieve its fire rating. Provides a minimum 1 hour fire protection for both integrity and insulation with a weight…

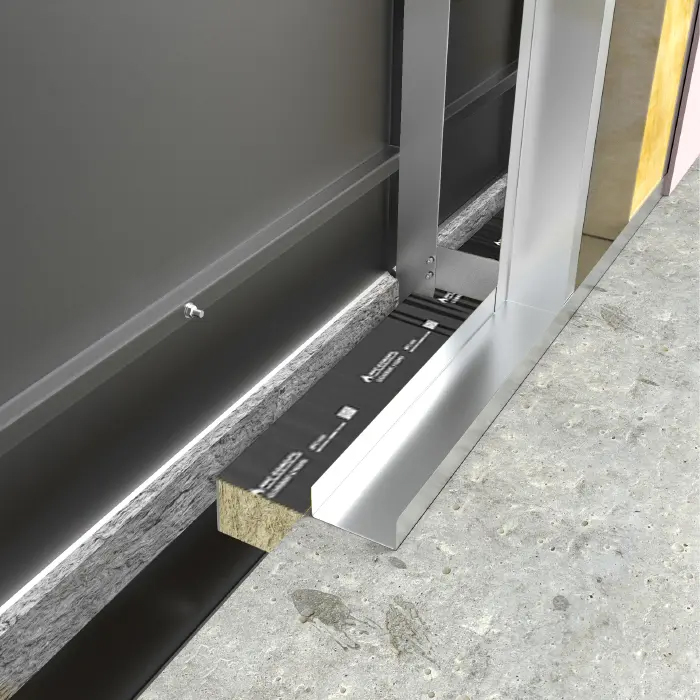

TDSCOSI PFC Corofil Open State Insert is designed for use with the PFC Corofil Open State Barrier COSB 25 (1024). PFC Corofil Open State Insert is a 150mm wide strip of 110kg/m³ density, non-combustible stone wool, the thickness required is dependent on the depth of the cassette panel up to 31mm deep. PFC Corofil Open…

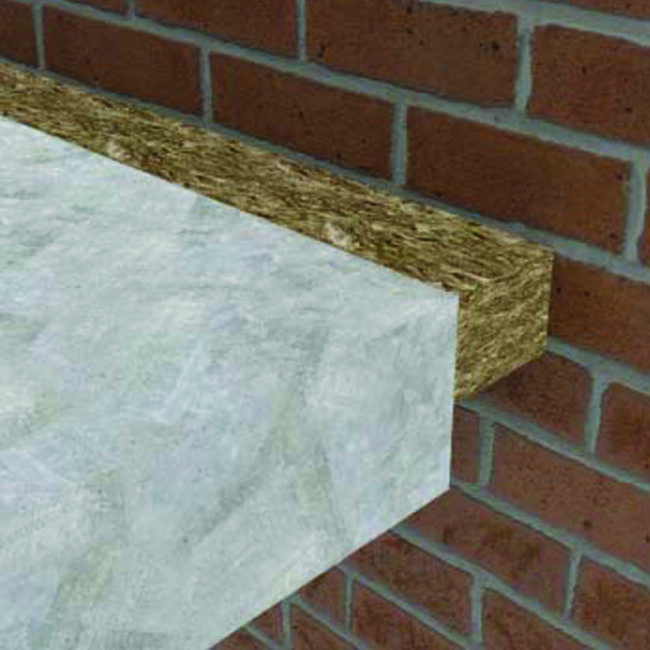

TDSCCFB PFC Corofil Cavity Fire Barrier CCFB is a full fill cavity fire barrier manufactured from a 100mm thick low density stone wool product installed between the inner and outer substrates of a masonry façade to reinstate the fire resistance performance of the cavity. The lighter density allows greater scope for compression when installing within brickwork…
Fire stopping solution for horizontal and vertical linear joints. PFC Corofil Linear Gap Seal Strip is a stone wool strip installed in rigid wall and rigid floor constructions to maintain the fire resistance of the separating element. Linear Gap Seal Strip is designed and tested to close linear gaps in rigid walls and rigid floors.…
Intumescent pillows are a passive fire protection solution designed to inhibit the spread of smoke and fire through cavities in walls, floors, ceilings, and other building compartments. Fire stopping for both permanent and temporary applications. PFC Corofil Intumescent Pillows are a mixture of reactive and non-reactive components encased in a thin woven glass fibre casing.…
Enabling a fire break wall when penetrated by cables, combustibles and steel pipes. PFC Corofil Firebreak Service Transits are round, square or rectangular steel sleeves which contain a heat reactive material. When exposed to heat the intumescent material begins to react, rapidly forming an insulating char plug which effectively closes and seals the service transit,…
PFC Corofil Cable Patches are made of an intumescent putty and used to form penetration seals where small cables, pipes or conduits penetrate walls. Cable Patches are available as 60mm diameter discs for apertures a maximum of 25mm x 25mm and 100mm diameter discs for apertures a maximum of 50mm x 50mm. The discs are…
An intumescent fire-stopping device for electrical back boxes. PFC Corofil Intumescent Putty Pad CIPP is a flexible intumescent sealant used to reinstate the fire resistance performance of flexible and rigid wall constructions where they have been provided with apertures for the penetration of electrical cables into electrical back boxes. The PFC Corofil Intumescent Putty Pad…
