Fire stopping for service penetrations containing single plastic pipes. PFC Corofil Intumescent Pipe Collars are designed and tested to provide a fire-resistant seal in flexible walls, rigid walls, rigid floors, and PFC Corofil Coated panels where they have been penetrated by service penetrations containing plastic pipes and metallic pipes with insulation. Tested to EN1366-3, PFC…

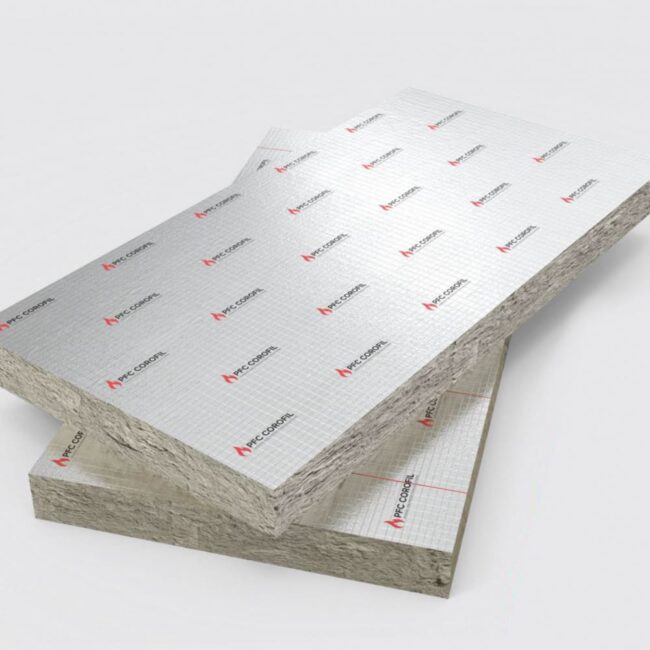

TDSCCFS with DPC Classified to EN13501-2, 3rd Party certification IFCC1667. PFC Corofil Cavity Fire Stop with DPC is a stonewool product with an integral polythene DPC adhered to its outer face. It has been tested to EN1366-4 in cavity widths up to 200mm and will provide 120 minutes of fire integrity and insulation performance. View…
Cavity Fire Stop Strips / Blocks A full fill cavity fire barrier that can be used horizontally and vertically. PFC Corofil Cavity Fire Stop full fill cavity barrier is a stone wool product installed between the facade and the inner structure of a building to reinstate the fire resistance performance of the cavity. Tested to…
TDSCCFS For installation within building cavities between the façade and the inner structure. All tested cavity widths and substrate specifications along with their fire resistance performance can be found on the technical data sheet TDSCCFS. View NBS Source View/Download datasheet(s): DATASHEET Key points: Applications provide up to 120 minutes fire integrity and insulation performance. Suitable…

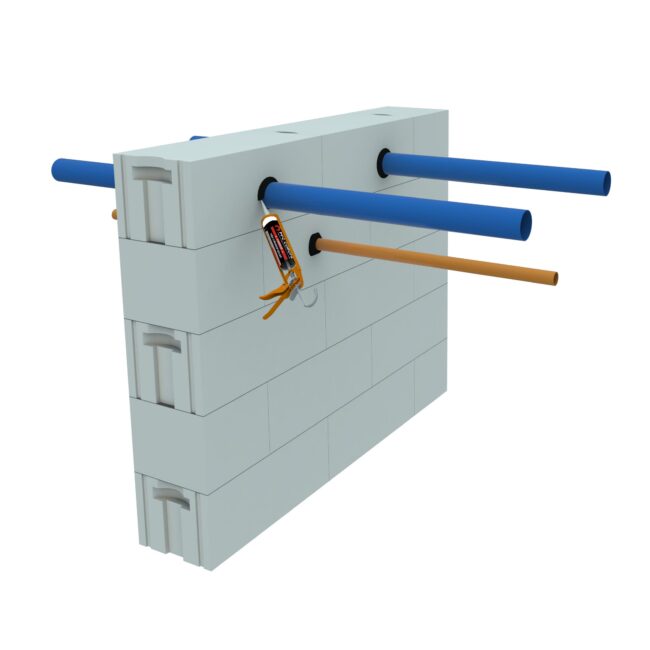

PFC Corofil High Expansion Sealant is an acrylic-based graphite sealant used to reinstate the fire performance of wall and floor constructions where they have been provided with apertures for the penetration of single or multiple services. Supplied in 330ml cartridges, our High Expansion Sealant can be applied to flexible and rigid walls, rigid floors and…
An intumescent, fire-stopping sealant suitable for linear gap seals and penetration seals. PFC Corofil Intumescent Acoustic Sealant is an acrylic-based sealant used to form linear gap seals where gaps are present in wall and floor constructions and linear joint seals where wall and floor constructions meet. Our 2-hour fire-rated sealant can also be used to…

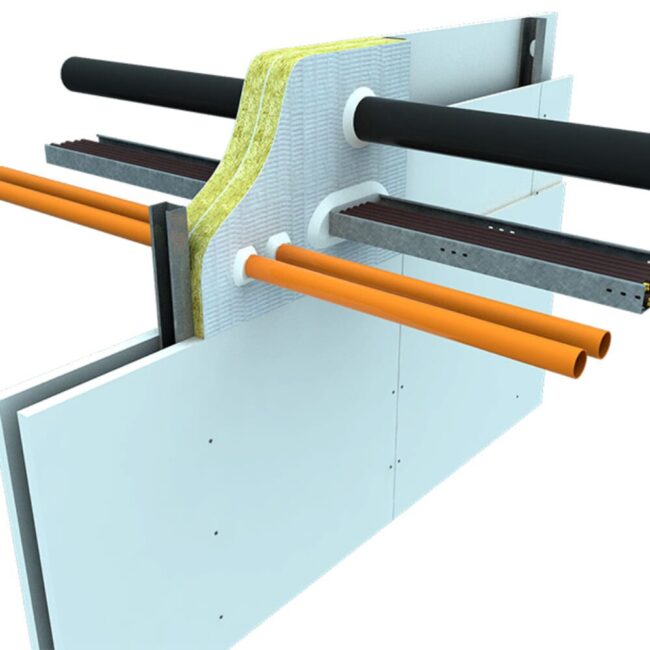

Fire stopping for single or multiple service penetrations. PFC Corofil Coated Panel System is a coated mineral wool board used to reinstate the fire resistance performance of wall and floor constructions where they have been provided with apertures for the penetration of single or multiple services. Coated Panel System is available in 1200mm x 600mm…
COSB 44 A 44mm Open State Cavity Barrier for use in ventilated facade systems, reacting in the event of fire to help prevent the spread of fire. PFC Corofil 44mm Open State Barriers combine non-combustible high-density stone wool with a high expansion intumescent strip fixed to the outer face. Depending on the product ordered, it…
PFC Corofil Linear Gap Seal Block is a stone wool block installed in the trapezoidal profile of a composite profile deck at the head of flexible and rigid wall constructions and above a steel beam protected with a gypsum-based cladding system. Tested utilising the principles of EN1366-4, PFC Corofil Linear Gap Seal Blocks will provide…
COSB 25 An Open State Cavity Barrier for use in ventilated facade systems, reacting in the event of fire to help prevent the spread of fire. PFC Corofil Open State Cavity Barriers combine non-combustible high-density stone wool with a high expansion intumescent strip fixed to the outer face. Depending on the product ordered, it will…
